SL3000-GS80 Draw-Wire Encoders
PREMIUM
Robust, industrial version for large measuring length up to max.3 m
Robust, industrial version for measuring length up to max. 3 m
Rope Length Transmitters were used for length and speed measurements of linear movement operations in several applications. Particularly they are easy to mount and have flexible designs.
The designs contain in a flat plastic or robust aluminium casing a low-mass high-precise measuring drum with extremely solid spring-return. The winding of the robust high-flexible steel rope will be on one layer.
The standard designs have a flange, coupling or gear adaptation and were suitable for adaptation of an own encoder systems or for customary in trade encoder systems.
DRAW-WIRE ENCODERS – PREMIUM
- Robust aluminium housing
- High operational reliability and measuring accuracy
- Comprehensive accessories
- Ex approval available
- V4A version available
- Winding takes place in one layer
- Robust, highly flexible steel cables
- Drum with threaded spindle,
for measuring lengths 1 m to 3 m
Modifications and adaptations are possible at any time on request.
Technical data
SL 3000 / GS 80
| Measuring length | 1m | 2m | 3m |
| Casing material |
aluminium, anodized |
||
| Circumference of drum (incl. wire) |
200 mm |
||
| Measuring wire Ø / mm |
1,35 mm |
||
| Material of measuring wire |
1.4401 |
||
| Linearity * |
± 0.05 % |
||
| Reproducibility * |
0,1 % |
||
| Hysteresis * |
0,05 % |
||
| Speed adjustment |
8 m / s |
||
| Spring-return strength |
5 – 15 N |
||
| Life cycle (typical) ** |
up to 1 Mio. Load change cycles |
||
| Temperature range |
– 30° C up to +70° C |
||
| IP code |
IP 64 |
||
| Weight (without encoder) | 0,9 kg | 1,1 kg | 1,5 kg |

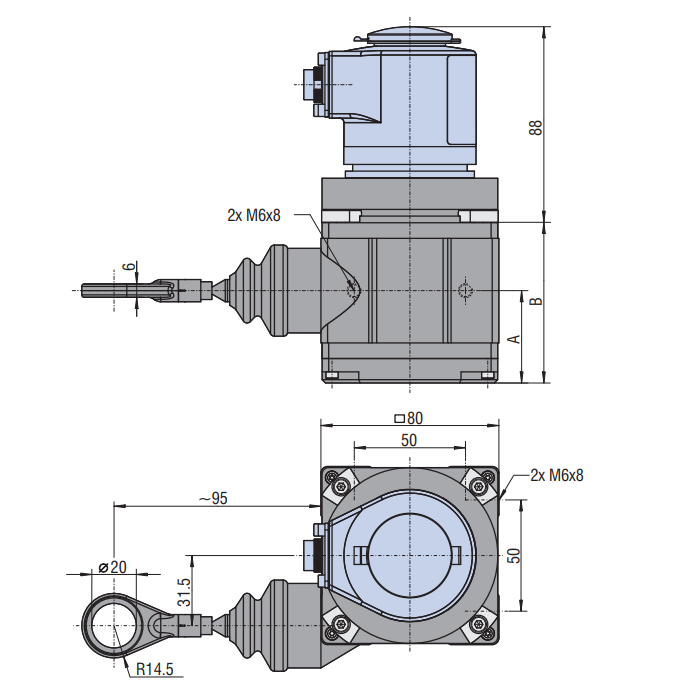

| Dimensions (in mm) | |||
| A *** | 34 | 42 | 60 |
| B *** | 57 | 72 | 98 |
* Referring to measuring value of Rope Length Mechanic without encoder system
** The life cycle is dependent to the type of load. Factors of influence are environmental conditions, mounting conditions, used measuring range, traverse speed as well as acceleration.
*** While using a measuring wire with Ø 0.81 mm the model is shortened
