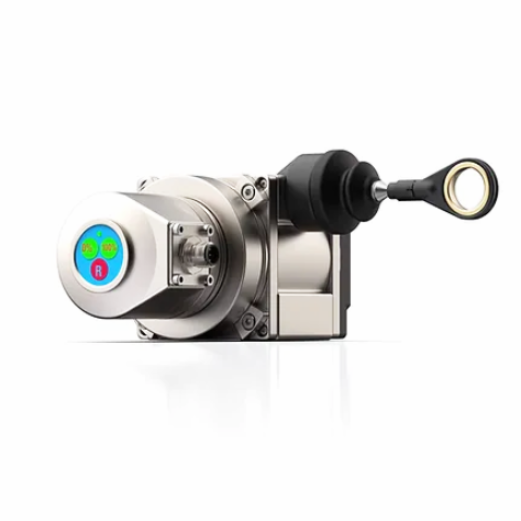

SL03-GS80 Draw-Wire Encoders
COMPACT
-
Low-priced alternative to the SL series
-
Robust aluminium housing
- Additional dust protection by bellows with steel tip, for measuring lengths up to 3 m
GENEREL
Draw-wire encoders were used for length and speed measurements of linear movement operations in several applications. Particularly they are easy to mount and have flexible designs.

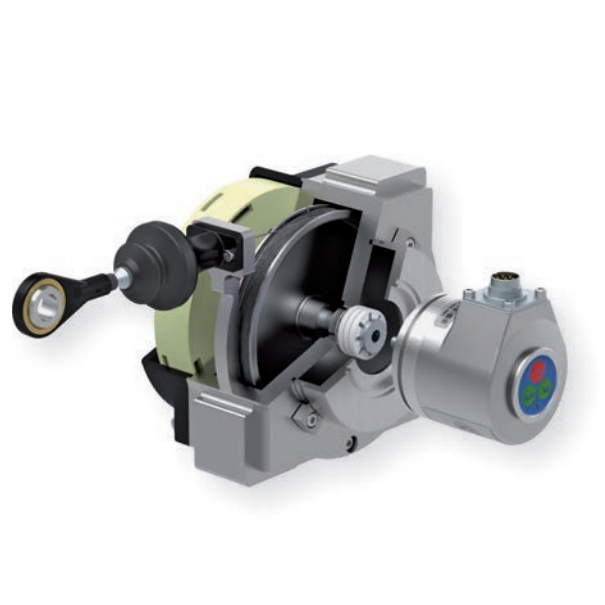

The designs contain in a flat plastic or robust aluminium casing a low-mass high-precise measuring drum with extremely solid spring-return. The winding of the robust high-flexible steel rope will be on one layer.
The standard designs have a flange, coupling or gear adaptation and were suitable for adaptation of an own encoder systems or for customary in trade encoder systems.
DRAW-WIRE ENCODERS -COMPACT
- Low-priced alternative to the SL series
- Robust aluminium housing
- Additional dust protection by bellows with steel tip, for measuring lengths 1- 5 m
Modifications and adaptations are possible at any time on request.

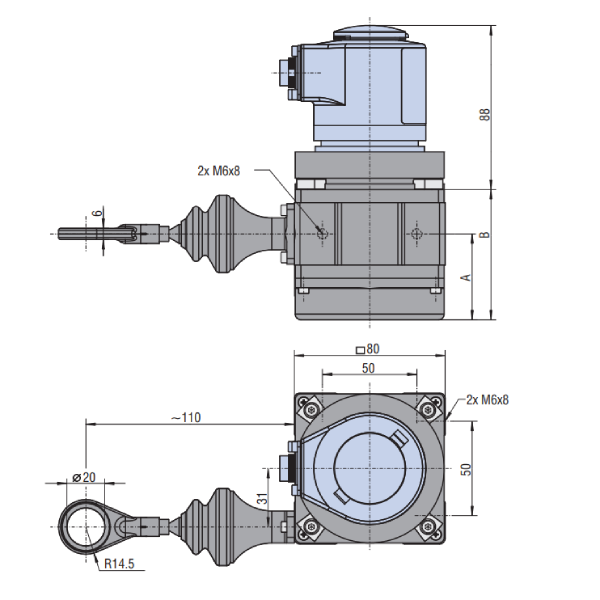

Technical data
SL 03 / GS 80
| Measuring length | 3m |
| Casing material | Aluminium, anodized |
| Circumference of drum (incl. wire) | 200 mm |
| Measuring wire Ø / mm | 0,55 mm |
| Material of measuring wire | 1.4401 |
| Linearity * | ± 0.1 % |
| Reproducibility * | ± 0.01 % |
| Hysteresis * | 0,05 % |
| Speed adjustment | 8 m / s |
| Spring-return strength | 5 – 15 N |
| Life cycle (typical) ** | up to 1 Mio. Load change cycles |
| Temperature range | – 30° C up to +70° C |
| IP code | IP 64 |
| Weight (without encoder) | 1,1 kg |
* Referring to measuring value of Rope Length Mechanic without encoder system
** The life cycle is dependent to the type of load. Factors of influence are environmental conditions, mounting conditions, used measuring range, traverse speed as well as acceleration.
