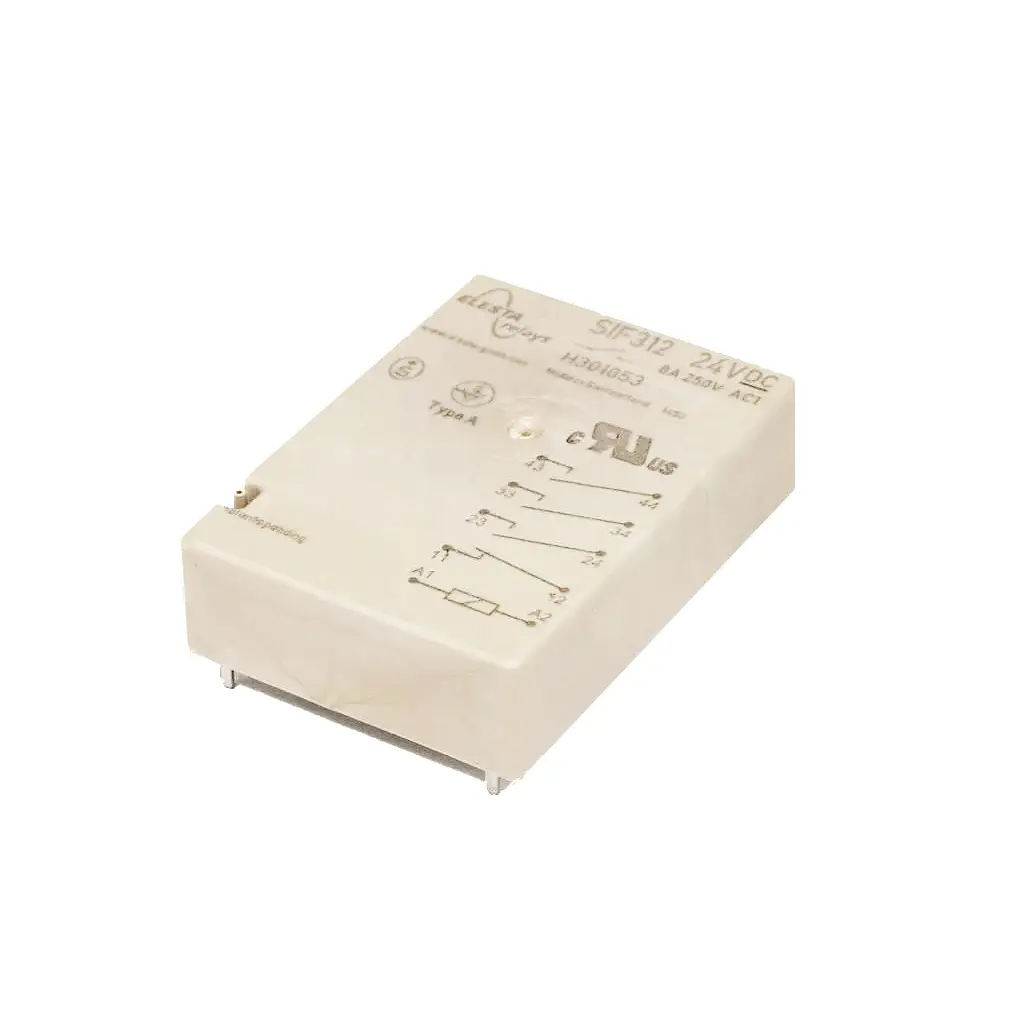

SIF 3 Series
The SIF 3 series contains 3-pole relays with forcibly guided contacts according with IEC 61810-3
The SIF 3 series contains 3-pole relays with forcibly guided contacts according with IEC 61810-3 in an extremely flat design (10.9 mm). This relay series stands out for a large switching current range. Component installation under the relay is possible.
- Relay with forcibly guided contacts according to IEC 61810-3
- Application type A
- Protective separation (see insulation data)
- Suitable for print mounting
- SMD placement under the relay possible
- Height only 10,9 mm
- Contact assembly

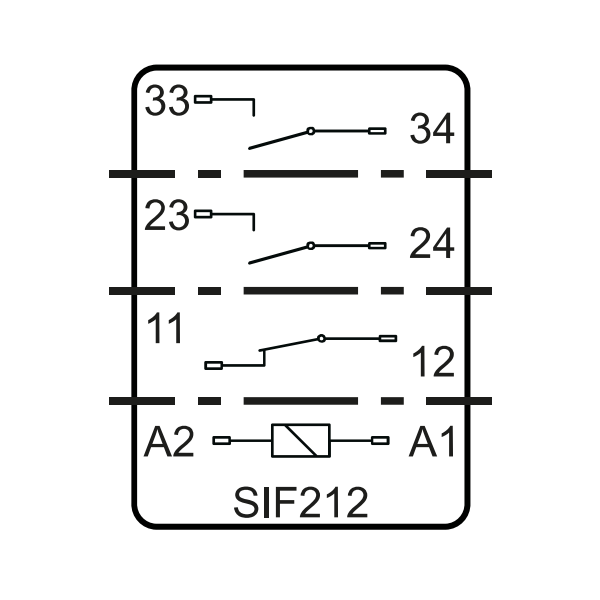

SIF212: 2 NO + 1 NC
Technical data
Contact mounting
2 NO / 1 NC
Switching current range
3 mA to 10 A
Coil voltages
5 VDC to 110 VDC (Special coils on request)
Nominal coil power
0.6 W
Design (LxWxH)
33,65 x 29,25 x 10,9 mm
Approvals
UL, cUL, TÜV
Areas of application:
access control, interfaces, transportation, robotics, machine tools
access control, interfaces, transportation, robotics, machine tools
