RECHARGEABLE TORCH

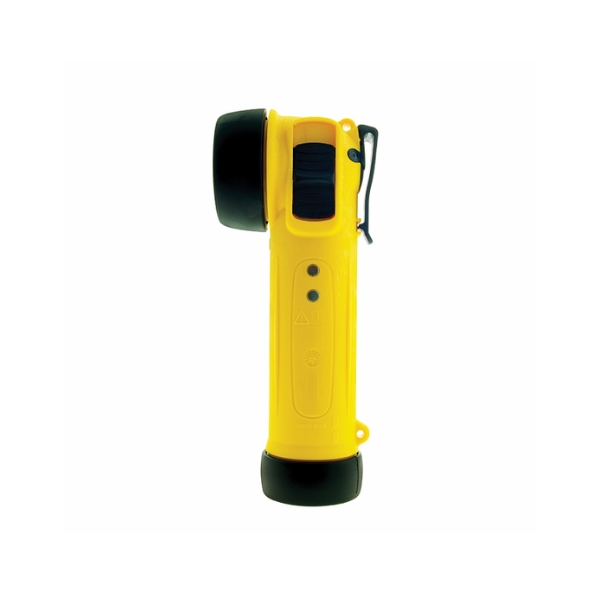

The Wolf Rechargeable Torch is an ATEX and IECEx certified rechargeable right angle safety torch, using the latest technology to give excellent performance, robustness and reliability for safe use in Zones 1 and 2 potentially explosive gas and 21 and 22 dust atmospheres (R-50). Zones 0 and 21 version available (R-55).
This high strength right-angle torch is extremely robust and reliable, with proven shock protection, even at sub zero temperatures, rubber armoured lens ring and end cap, scratch and chemical attack resistance lens, with a certified IP67 enclosure. The compact, lightweight and ergonomic torch body gives enhanced grip and comfort for the user with easy single-handed switching, even with gloved hands, plus the replaceable high strength clip allows for hands free use.
Unique optics deliver a piercing beam of outstanding light from a high power LED, and using the latest rechargeable battery technology provides a light duration of up to 6.5hrs on low power and 3.5hrs on high power. The low battery power indicator allows a user to monitor the state of battery charge as it diminishes, a bar of high intensity red LEDs go out and finally the beam flashes repeatedly, warning recharging is required. Plus its emergency function illuminates the torch if power to the charger is cut to provide standby escape lighting.
The torch is low maintenance with quick and easy parts replacement, a full spares service is offered for all internal/external fittings, and the LED light source is expected to last the product’s lifetime. Vehicle and mains voltage charger options offer a rapid recharge time of only 1.5hrs for 90% capacity, plus the mountable ‘quick’ charger is configured as a torch holder, with ‘snap in/snatch out’ function, for quick release but secure retention.
FEATURES & BENEFITS
- ATEX and IECEx certified for Zones 1 and 21, plus Zones 0 and 21 version available (R-55)
- High power LED for outstanding light output
- Compact and lightweight ergonomic torch design
- Two power levels of light output give up to 6.5 hours light duration
- Rechargeable battery with low power indicator
- Supplied with wrist strap and slip ring
- Emergency illumination function
- Mains and vehicle charger options
- Suitable for cyclic and short and long term standby applications
- Very low maintenance, quick and easy parts replacement
ZONES: 0, 1, 2, 21 AND 22
Technical data
| PRODUCT REFERENCE | R-50 | R-55 | ||
|---|---|---|---|---|
| PRODUCT DESCRIPTION | Rechargeable Right Angle Safety Torch | |||
| Zone 1 LED | Zone 0 LED | |||
| CODE |
I M2/II 2GD Ex ib I Mb/IIC T4 Gb (-40°C≤ Ta≤+40°C) Ex ib IIIB T200°C Db IP67 |
I M1/II 1G2D Ex ia I Ma/IIC T4 Ga (-40°C ≤ Ta≤40°C) Ex ib IIIB T200°C Db IP67 |
||
| TYPE OF PROTECTION | ‘ib’ intrinsic safety | ‘ia’ intrinsic safety | ||
| AREA OF CLASSIFICATION (GAS) | Zones 1 & 2 Gas Groups IIA, IIB and IIC |
Zones 0, 1 & 2 Gas Groups IIA, IIB and IIC |
||
| TEMPERATURE CLASS (GAS) | T4 | |||
| AREA OF CLASSIFICATION (DUST) | Zones 21 & 22 Dust Groups IIIA and IIIB |
|||
| MAX. SURFACE TEMP. (DUST) | T200°C | |||
| AMBIENT TEMPERATURE | -40°C to +40°C | |||
| CERTIFICATE | Baseefa05ATEX0069X / IECExBAS06.0001X / BAS21UKEX0438 | |||
| ENCLOSURE | Impact Resistant Thermoplastic, Chemical Resistant, Static Dissipative | |||
| LENS | Toughened Glass 4mm | |||

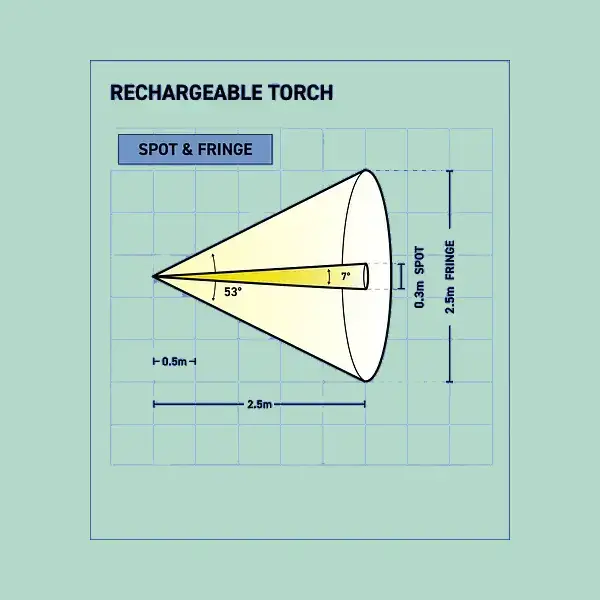

| BEAM TYPE | High Output Spot Beam | |||
| LIGHT SOURCE: | TYPE | High Power LED | ||
| WATTS | 3 Watts | |||
| OUTPUT | High Power – Up to 300lm / Low Power – Up to 172lm | |||
| LIFE | 25,000hrs+ (Fitted For Life) | |||
| POWER SOURCE: | PART NO. | R-271 | ||
| TYPE | Rechargeable Battery, Lithium-Ion | |||
| VOLTS | 7.4V | |||
| CAPACITY / LIFE | 2.4Ah / Up to 500 Recharge Cycles | |||
| LIGHT DURATION | High Power – Up to 3.5hrs / Low Power – Up to 6.5hrs | |||
| INGRESS PROTECTION | IP67 | |||
| WEIGHT (INC. CELLS) | 0.375 Kg | |||
| CHARGERS | 12-24Vdc RC-200L / 90-264Vac RC-200H | |||
| RECHARGE TIME | 3.0 hours (90% in 1.5 hours) | |||
