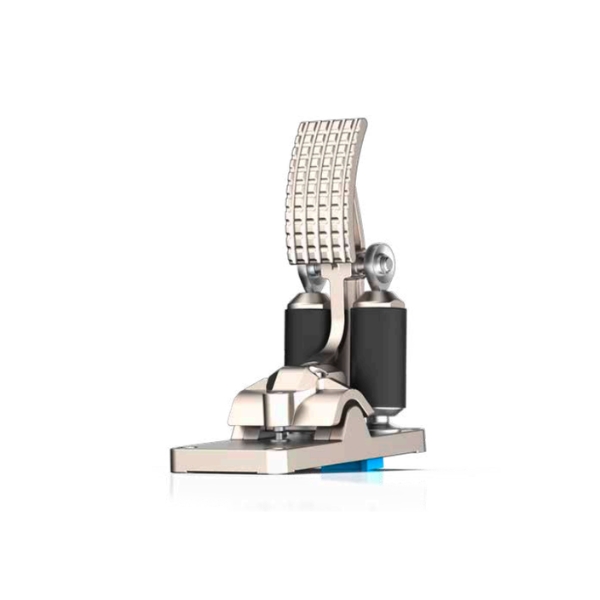

FS-G-ZF Foot switch
Accelerator pedal with additional springs for use in demanding environments.
- Designed for extreme operating conditions
- Mounting position usually overhead, i.e. as suspended pedal
- With additional spring for high actuating forces (ZF)
Technical data
Foot switch FS-G-ZF
| Housing size | 91 x 181 mm |
| Housing material | Cast aluminum |
| IP code of housing | up to IP67 |
| Fastening | 4 x Ø 8,5 |
| Pedal angles | 20° |
| Actuating force | 50–160 N |
| Temperature range | -30 °C to +80 °C |
| Shock | 50 g, 6 ms |
| Vibration | 4 g Sinus, 5–200 Hz |
| Connection | Plug / cable |
| Weight 1250 g | 1250 g |
| Measuring system | magnetic, redundant |
| Signal output | analogue, digital |
| Signal output | Current 3-wire technology |
| Maximum load current | 600 Ω |
| Supply | 18–36 V DC |
| Current consumption | < 80 mA |
| Test voltage | 500 V, 50 Hz, 1 min |
| Immunity standard | EN 61 000-6-2 |
| Emission standard | EN 61 000-6-4 |
