High-performance linear solenoids

The high-performance linear solenoids of the LHP series are our strongest. That’s why they are used wherever large forces, short switching times, and high efficiency are required in a small installation space. The electromagnets achieve high power density thanks to a superior magnet design, which impresses with its optimal copper-iron ratio and precise cone control. Compared to, for example, round solenoids, the solenoids of the LHP series can be built very compactly, making them the first choice for numerous applications. In addition to the high force, the linear solenoids also guarantee easy assembly, dynamic switching, and long service life. The application range of the LHP-Series solenoids extends from high voltage circuit breakers to railway door interlocks and general actuation functions of automation and medical technology.

The High Power Team – Discover the possibilities now

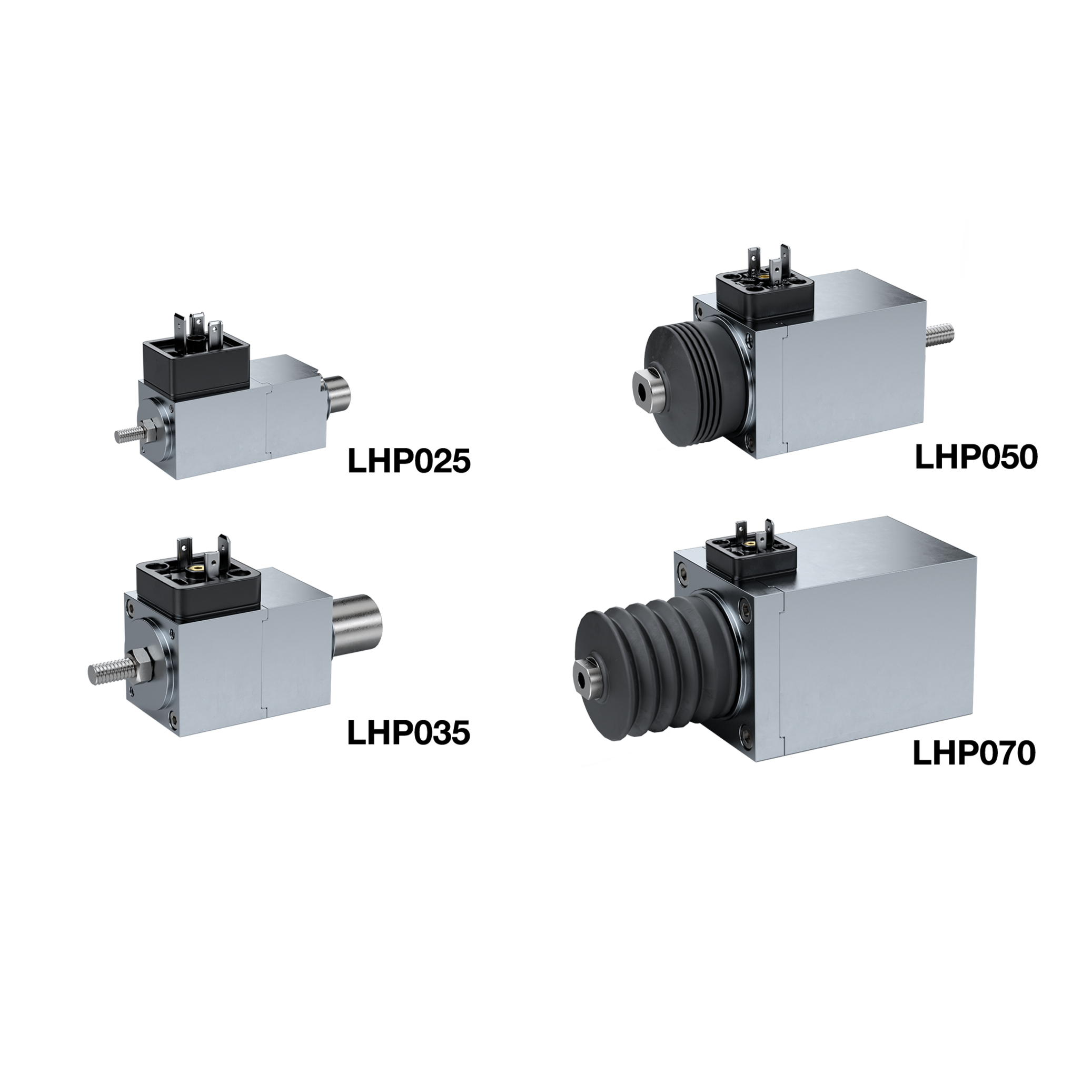

The LHP series is now available in four new sizes. Thanks to the modular design of the LHP high-power solenoids, numerous configurations can be realized with the same basic solenoid. This comprises different strokes, power, and voltage variants. Furthermore, the solenoids can be equipped with increased IP protection, different connection technology, optional return spring, and other attachments.

•     The LHP025 with an edge dimension of 25 mm
•     The LHP035 with an edge dimension of 35mm (standard version)
•     The LHP050 with an edge dimension of 50 mm
•     The LHP070 with an edge dimension of 70 mm

Download solution example below:

Double fall protection
Redundant fall protection for lift systems

Secure door locking for modern buildings
Locking systems for automatic doors

Prepared for emergencies
Solenoid for door protection in railway technology

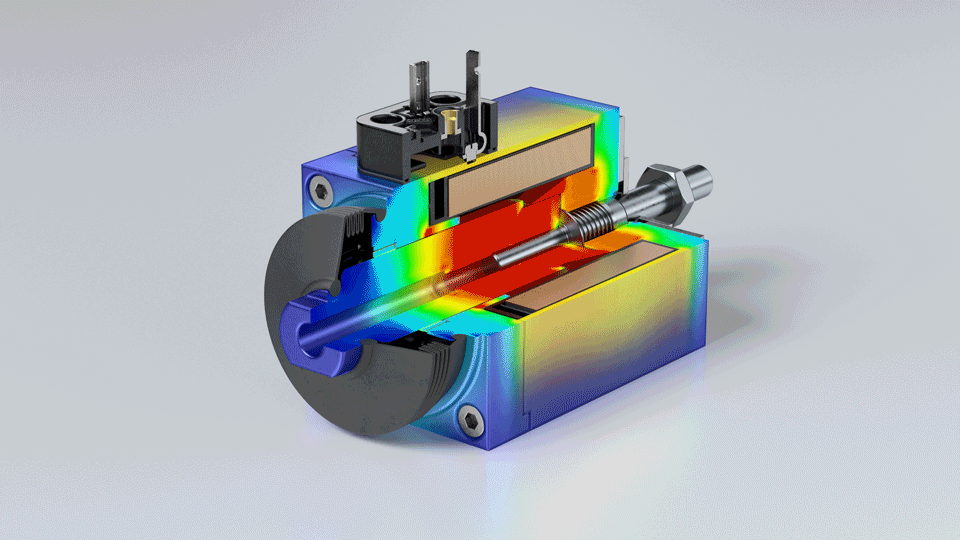

The colored B-field shows the strength of the magnetic flux passing through the iron circuit in the high-performance linear solenoid. The warmer the colors are shown, the higher the magnetic flux density. If a coil is used to generate a high flux, a very strong magnetic field is produced because the magnetic flux generated has little iron cross-section available. The high-performance linear solenoids are characterized by the particularly high power density and can be mounted in a versatile way with a small installation space due to the square design.
