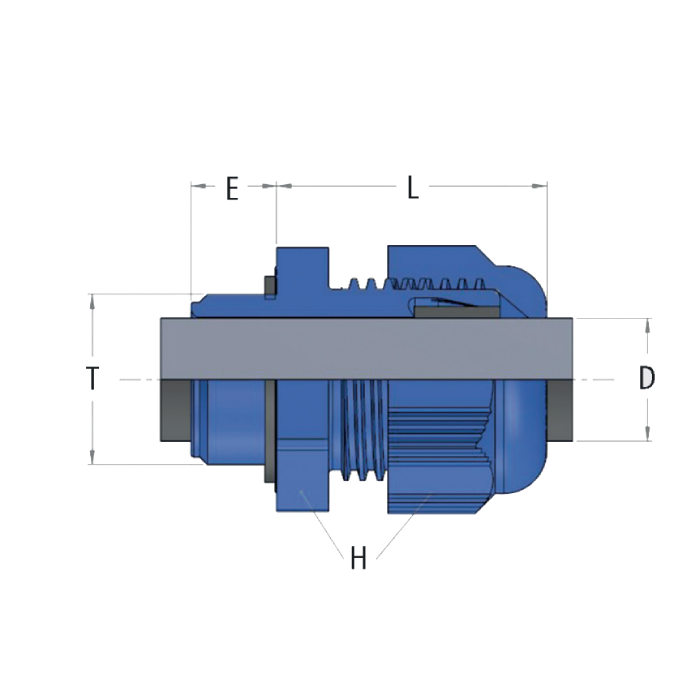

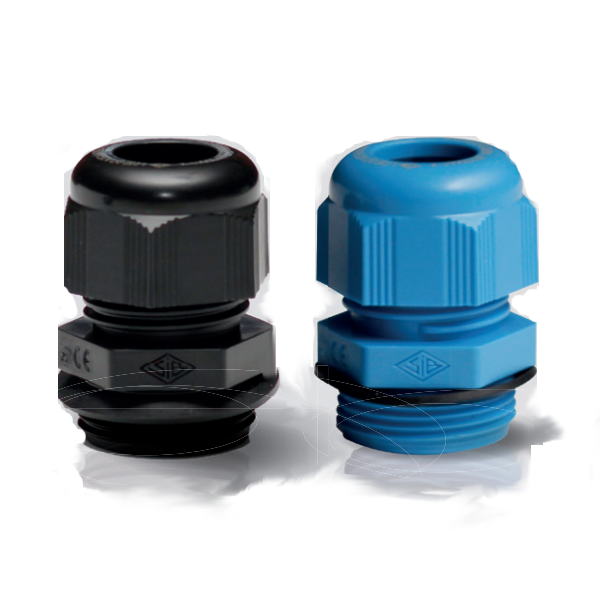

Nylon Cable Gland SIB TEC Ex e
IP PROTECTION :
• IP 66, IP 68
IP PROTECTION : IP 66, IP 68
OPERATING TEMPERATURE :
• M12 : -20°C to +80°C
• M16 to M63 & NPT : – 35°C to +95°C
SPECIAL FEATURES :
Flat seal on metric thread, version with reduced sealing
MATERIAL :
• Gland : PA66 / PA6 (UL 94-V2)
• Flat seal : Neoprene
THREAD :
Metric, NPT (other thread on request)
Technical desciption
TECHNICAL SPECIFICATIONS :
• Equipment group : IIC/IIIC
• Category : 2 & 3
• Atmosphere : G & D
• Zones : 1, 2, 21, 22
CODE OF PROTECTION :
II 2 GD Ex eb IIC Ex tb IIIC
CERTIFICATIONS & COMPLIANCES :
• EN / IEC 60079-0 + A11
• EN / IEC 60079-7
• EN / IEC 60079-31
• VDE (metric) : 40046804
• UL : E184471
• ATEX : LCIE 07 ATEX 6082 X
• IECE x : LCI 10.0008 X
• INMETRO : BVC11.0661-X
• TR CU EX : RU C-FR.ГБ05.B.00955
ACCESSORIES AVAILABLE :
Locknut
