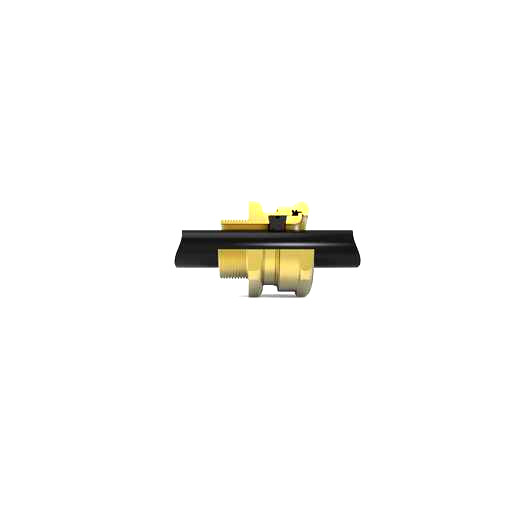

501/421 | Ex d & Ex e | Cable Gland
The Hawke 501/421 is a Group II certified single seal cable gland suitable for installation in Zone 1/21 and Zone 2/22 hazardous areas.
.
The Hawke 501/421 is a Group II certified single seal cable gland suitable for installation in Zone 1/21 and Zone 2/22 hazardous areas. Dual Certified ATEX/IECEx (along with many more) for use in Increased Safety (Exe), Flameproof (Exd), Restricted Breathing (ExnR) and Dust (Ext) protection concepts. For use with non-armoured elastomer and plastic insulated cables. This cable gland may be used with braided cables where the braid and outer sheath pass into the enclosure, and the requirements of 60079-14 are met.
- Single elastomeric compression Exd seal on cable outer sheath
- Rounded cable entry to prevent cable damage
- Available with metric or NPT entry threadforms
Technical data
| Applikation | Farligt område Zon 1, Zon 21, Zon 2, Zon 22 |
| Skyddsklass |
|
| Material | Mässing, Förnicklad mässing eller 316L Rostfritt stål |
| Temperatur | -60°C till +100 °C |
| Serie | Group II Hazardous Areas |
Certifikat och överensstämmelser
| ATEX File Number | CML 19ATEX1167X CML 19.0045X |
| CSA File Number | CSA1015065 |
| Certification |
|
| Hazardous Rating(s) |
|
| Industry Standard(s) |
|
| Ratings | IK10 to IEC 62262 |
Certifications And Compliance
CML 19.0045X
- ATEX: CML 19ATEX1167X / CML 19ATEX4507X (Ex nR)
- CCC: 2020312313000315
- cCSAus: 1015065
- DNV: TAE0000BS
- EAC: No EA3C RU C-GB.HA91.B.00264/21
- EQM: 20-11-27224/Q20-11-000979/NB0007
- IECEx: CML 19.0045X / CML 21.0012X (Ex nR)
- Inmetro: IEx 14.0272X
- KCs: 17-KA4BO-0634X to 0637X
- PESO: P450038
- SONCAP: LCOGB049552-0500
- UKEx: CML 21UKEX1161X / CML 21UKEX4133X (Ex nR)
- Ex II 2GD Ex db eb IIC Gb
- Ex nR IIC Gc
- Ex tb IIIC Db
- Class I, Zone I, AEx eb IIC Gb
- Zone 21, AEx tb IIIC Db
- Class I, Div.2 Groups ABCD
- Class II Div.2, Groups EFG
- Class III
- IEC/EN 62444 (Anchorage Type B)
- IEC/EC 60079-0, 1, 7, 15, 31
- CSA 60079-0, 1, 7, 31
- UL 60079-0, 7, 31
- UL514B
- UL1203
- UL2225
