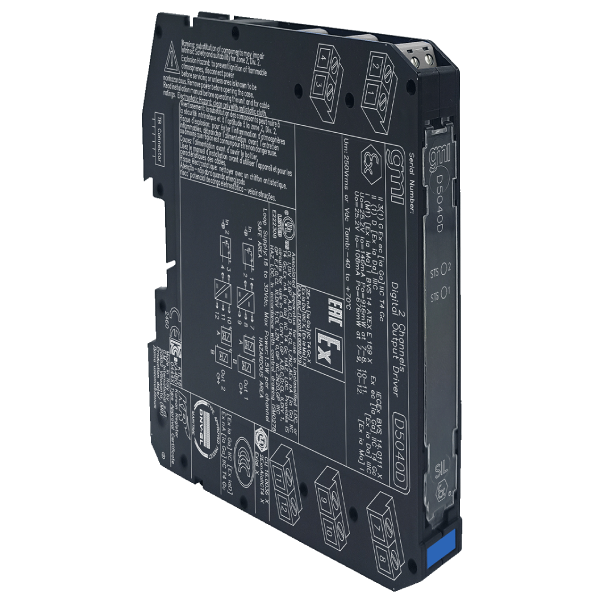

GMI D5040D Isolators

I.S. SIL3 Loop-Powered Digital Output Driver

The Loop-Powered Digital Output Driver D5040 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It can drive solenoid valves, visual or audible alarms to alert a plant operator, or other process control devices in Hazardous Area from control signals located in Safe Area. They can also be used as switchable supplies to power measuring or process control equipments. For each channel two basic output circuits are selectable, with different safety parameters, to interface the majority of devices on the market.

FEATURES

  • SIL 3 / SC 3
  • Output to Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 2 fully independent channels
  • Loop powered for NE loads
  • Output short circuit proof
  • Two port isolation, Input/Output
  • High Density, two channels per unit

CHANNELS

2

Technical data

Input
Type Loop powered control signal.
Voltage 24 Vdc nom (18 to 30 Vdc), reverse polarity protected.
Current Consumption 45 mA @ 24 Vdc with 30 mA outputs, typical.
Power Dissipation 0.75 W @ 24 Vdc with 35 mA outputs, typical.

Output
Short circuit current ≥ 35 mA/channel; ≥ 70 mA two outputs in parallel
Response time ≤ 75 ms.

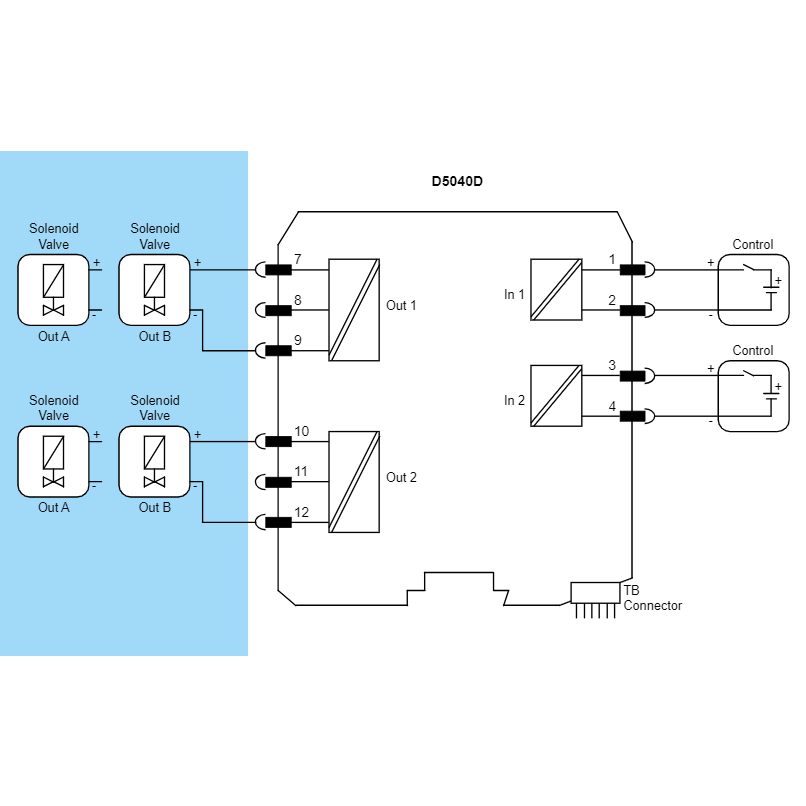

Output diagram refer to Instruction Manual.

Isolation
Test Voltage I.S. Out/In 1.5 kV; Out/Out 500 V; In/In 500 V.

Environmental conditions
Operating temperature temperature limits –40 to +70 °C
Storage temperature temperature limits –45 to +80 °C.

Safety description
Equipment Associated apparatus and non-sparking electrical equipment.
Safety parameters Uo = 25.2 V, Io = 146 mA, Po = 916 mW at terminals 7-8, 10-11. Uo = 25.2 V, Io = 108 mA, Po = 676 mW at terminals 7-9, 10-12. Refer to Instruction Manual for more details. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.

Mounting
Type DIN-Rail 35 mm, or on custom Term. Board.
Weight about 110 g.
Connection by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG).

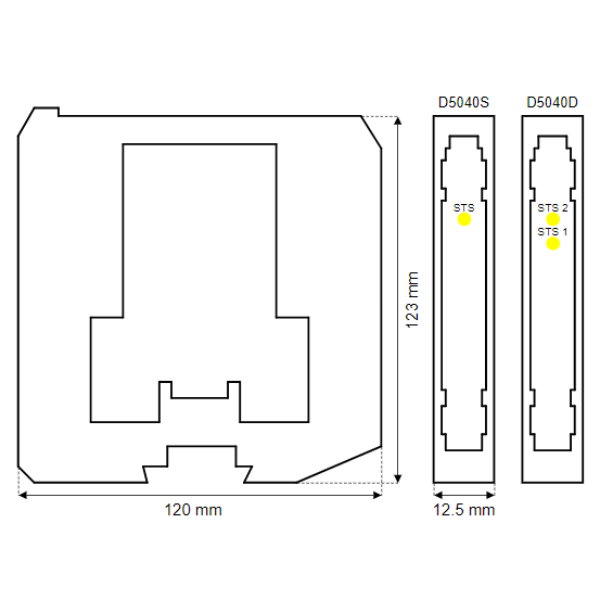

Dimensions Width 12.5 mm, Depth 123 mm, Height 120 mm.

Download

Datasheet Engelsk

Instructions manual, 5040S-5040D

Instructions manual, D5000 – D5200 Series
