ATEX Kompakt LED Lampa

With a maximum light output of up to 330 lumens, the Zone 0 TR-65 and TS-65 have 3 power modes, are lightweight, compact and robust. Reliable, durable and easy to use and carry, they are ideal for use in the most demanding Hazardous Area work places.

3 power modes offer maximum choice and flexibility: the highest power setting gives a class leading light output of up to 330 lumens; medium power supplies up to 165 lumens with an increased duration of up to 14 hours.  On the lowest power setting, the torch provides a useful light to be seen by which will last for up to 159 hours.

When the battery level falls to 15% of its maximum level, the battery charge indicator will flash (battery charge indicator only on TR/TS-65 models), and the beam will be interrupted momentarily once every 5 seconds (both TR/TS-60 and TR/TS-65 models), clearly alerting the user and ensuring they need never be left in the dark.

Strong and robust, both straight and right-angle torch models are made from impact and chemical resistant thermoplastic – the same tried and tested super tough material used on Wolf hazardous area torches for nearly 2 decades.

Ergonomically designed for comfort, all torches in the range are easy to operate, even when wearing gloves. Lanyard fixings allow the torch to be securely attached to a tunic, tool belt or bag.

Spare parts are readily available to enable users to replace the LED module, lens, clip, end cap, cassette or circuit if required.

The ATEX Zone 1/21 TR/TS-60 models are an economical and very viable alternative to the TR/TS-65 models.  Certified for use in Zone 1/21, they emit up to 220 lumens from a single setting and have a 12 hour battery duration.

ZONES: 0, 1, 2, 21 AND 22

Light output/duration/power:

• Right Angle torch:

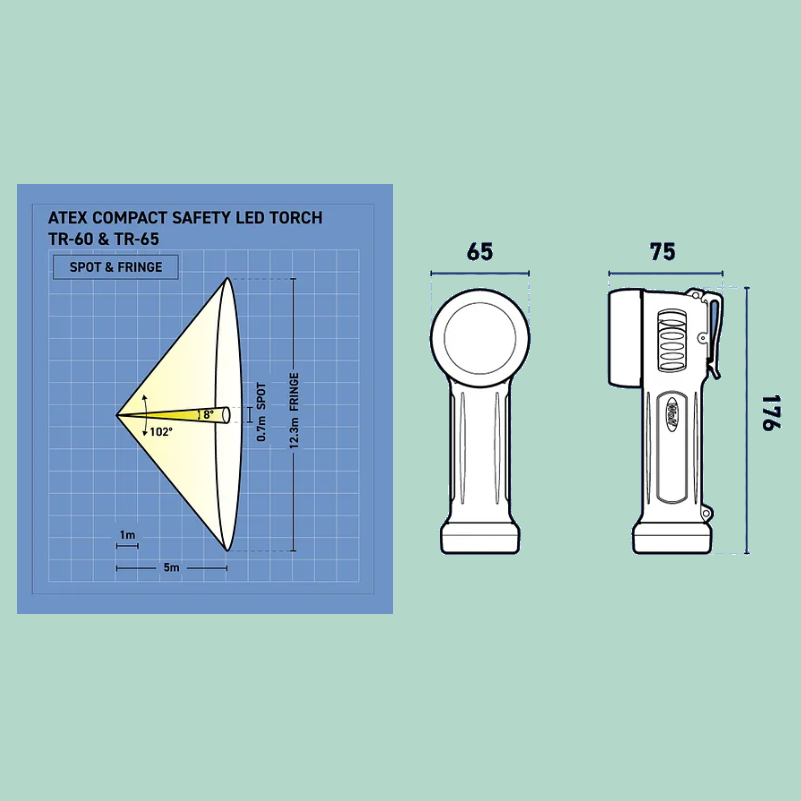

  • 300 lumens emitted (TR-65) / 200 lumens (TR-60)
• Straight torch:

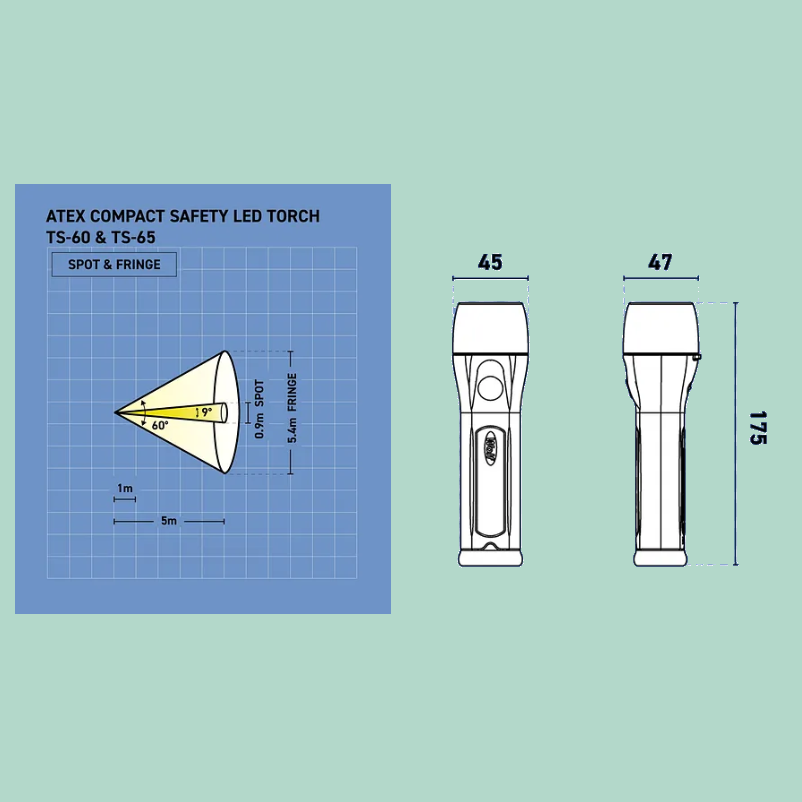

  • 330 lumens emitted (TS-65) / 220 lumens (TS-60)
• Duration at different power levels: 7/14/159 hours (TR/TS-65)/Up to 12 hours (TR/TS-60)
• 4 x AA alkaline primary cells
• 3 power modes for different light output (TR/TS-65); single mode (TR/TS-60)
• Balanced spot and fringe optics

 Certification:

• ATEX/IECEx Zone 0 (TR/TS-65) / Zone 1 (TR/TS-60)
• T4 temperature class
• IP66 and IP67 water and dust tight

Features:

• Battery level indicator (TR-65 & TS-65)
• Beam dip for last 15% of battery life for increased safety

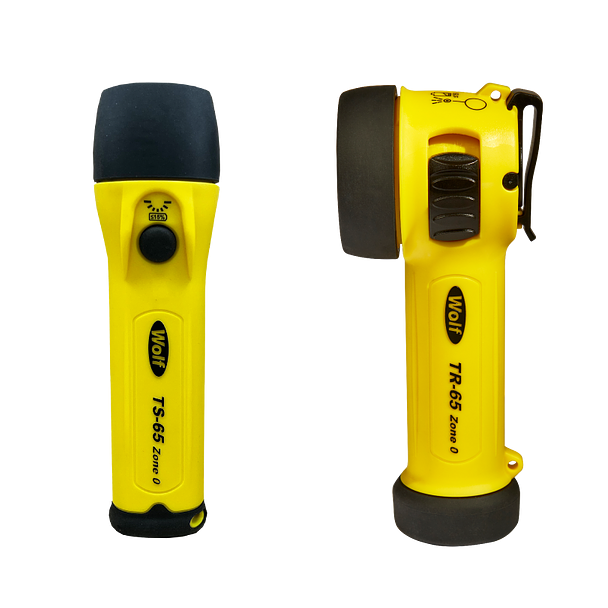

• Right angled and straight models available
• Robust, reliable and proven materials
• Ergonomic design
• Compact and lightweight
• Large switch (easy to use even when wearing gloves)
• Deep discharge protection
• Highly robust, replaceable polymer clib and flat torch back increases stability when fixed to tunic (right-angled models)
• Anti-roll foot (straight models) & flat base (right-angled models) enable easy hands free illumination
• Two lanyard fixings – one at each end of the torch (right-angled models only, straight models have single lanyard fixing)
• Easy maintenance, spare parts available
• Supplied with batteries
