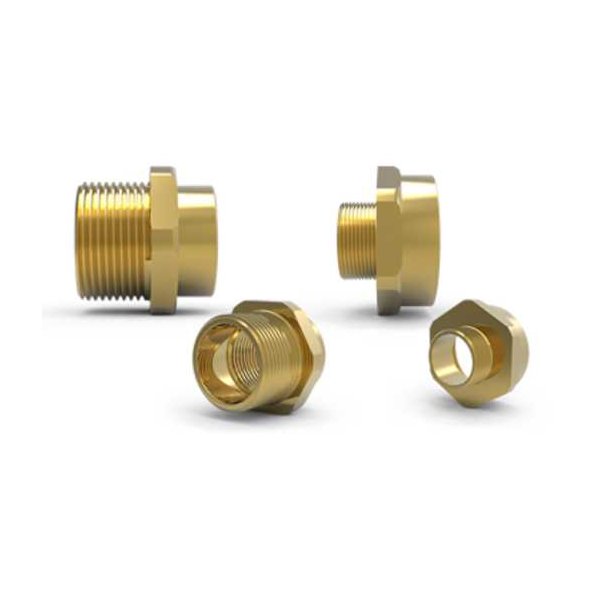

476 | Ex d & Ex e | Thread Adapter
Adapter / Reducer
The 476 is manufactured in Brass, Nickel Plated Brass, Steel, Nickel Plated Steel and Stainless Steel. (Aluminium for Group II use only).
The Hawke 476 metallic adaptor and reducer range is designed to increase or reduce entry thread sizes when mounted to a hazardous area enclosure. Dual Certified ATEX/IECEx (along with many more) for use in Flameproof (Exd), Increased Safety (Exe) and Dust (Ext) protection concepts. Also approved for use in Group I Mining Applications, and NEC Class I Div I Explosion proof.
- Metallic construction
- Certified Exd, Exe & Ext
- Metric and NPT thread options
The 476 is manufactured in Brass, Nickel Plated Brass, Steel, Nickel Plated Steel and Stainless Steel. (Aluminium for Group II use only).
Technical data
General
Certifications And Compliance
- ABS: 17-LD1653734-PDA
- ATEX: Baseefa 11ATEX0067X
- BV: 43523/A1
- CCC: 2020312313000308
- cCSAus: 1731876
- EAC: No EA3C RU C-GB.HA91.B.00265/21
- EQM: 20-11-27224/Q20-11-000979/NB0007
- IECEx: BAS11.0037X
- Inmetro: IEx 15.0193X
- SONCAP: LCOGB049552-0500
- UKEx: BAS21UKEX0057X
- Ex II 2GD Ex db eb IIC Gb
- Ex tb IIIC Db
- Ex I M2 Ex db eb I Mb
- CI ABCD CII EFG CIII
- CI Zn1 AEx d e IIC Gb
- Zn 21 AEx tb IIIC Db
- IEC/EN/CSA/UL 60079-0, 7, 31
- CSA C22.2 No. 25-1966, 30-M1986, 45-M1981, 94-M91, 18.3.-12
- UL 514B
